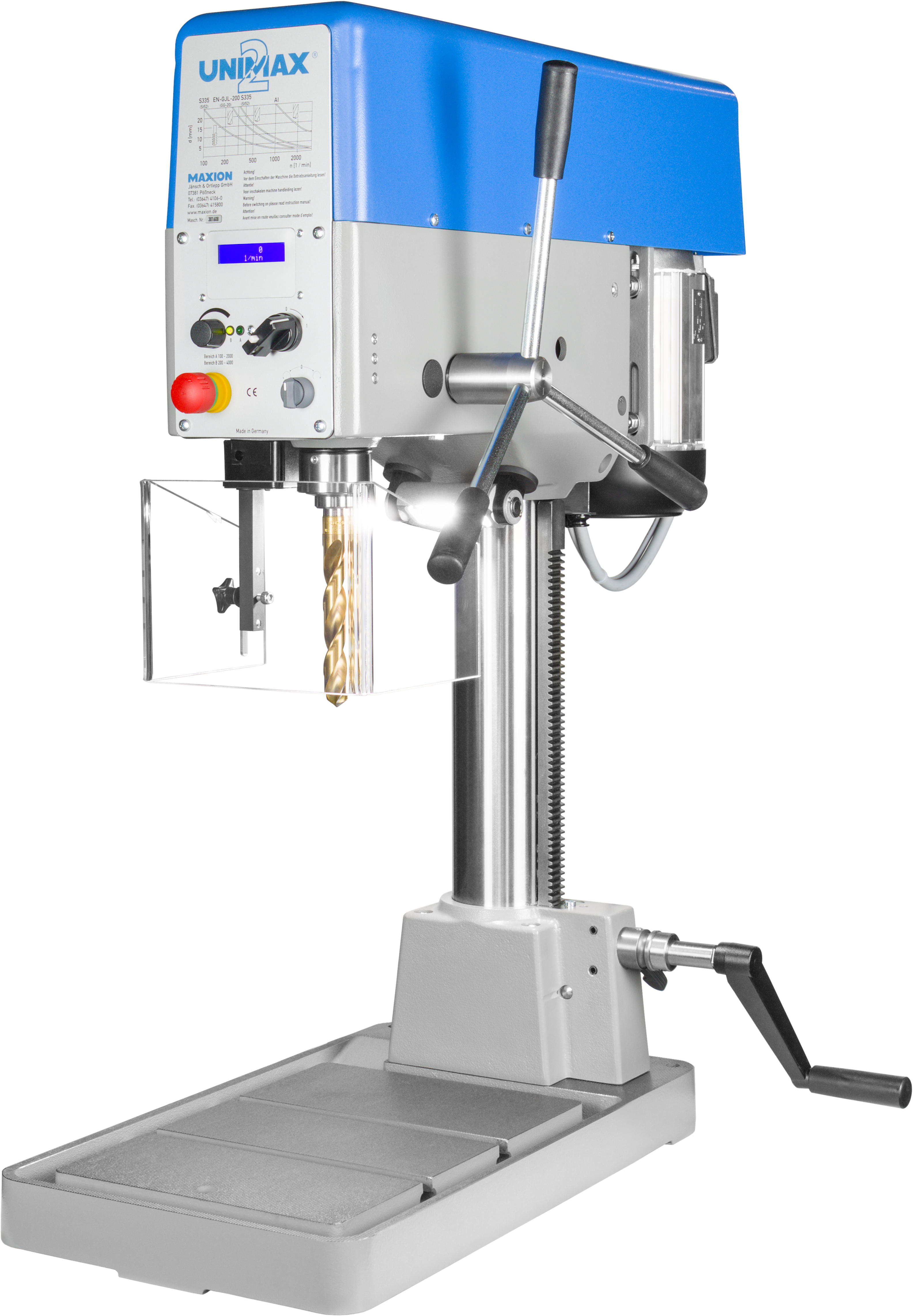

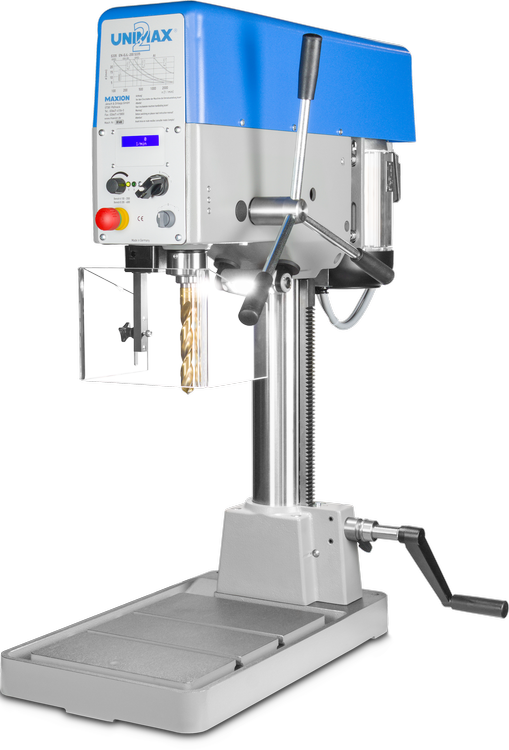

UNIMAX 2 T
- Powerful
- Optimally suited for locations
without tree-phase
current supply - Big rpm range
Powerful and precise universal bench drilling machine with wide range of application. Table/height adjustment via rack and pinion.
Three-phase motor, reverse switch for tapping, digital display for rpm, adjustment of rpm via potentiometer. UNIMAX 2 T with height adjustment from in front.
Technical data UNIMAX 2 T
-
Constant capacity in E 335 18 mm
-
Standard capacity 20 mm
-
Tapping capacity M 12
-
Spindle MT 2
-
Spindle travel 100 mm
-
Spindle to column 225 mm
-
Spindle / Table 60 to 440 mm
-
Table surface 345 x 372 mm
-
T-slot width 14 mm
-
Column diameter 90 mm
-
Total height max. 955 mm
-
Weight 110 kg
-
Frequency-controlled motor 1.5 kW
-
Mains connection 230 V / 50 Hz
Stepless spindle rpm
-
Range A 100 - 2,000 rpm
-
Range B 200 - 4,000 rpm
-
Standard packaging B - 100x85x130 cm
Downloads
Options / Accessories
- Drill package 2
-
1 drill chuck taper MT2 / B16
-
1 reduction insert MT2 / MT1
-
1 machine vice MSP 120
-
1 quick-release chuck 1 - 16 mm/B16
- Cross table MF-3
-
Table surface 600 x 240 mm
-
X / Y traverse 350 / 160 mm
-
Weight 75 kg
- Electrical cooling unit
With provided 20 litre coolant tank, including pump, pipe connections, flexible outlet and shut-off valve

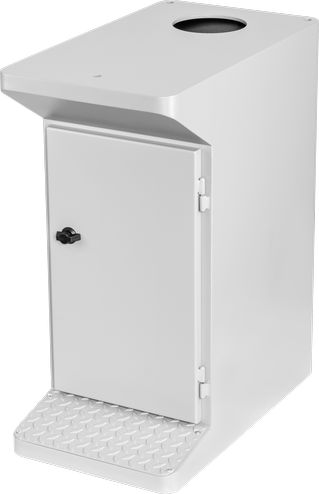

- Floor unit
