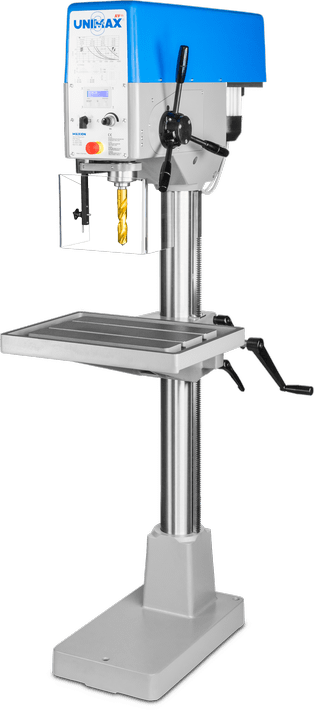

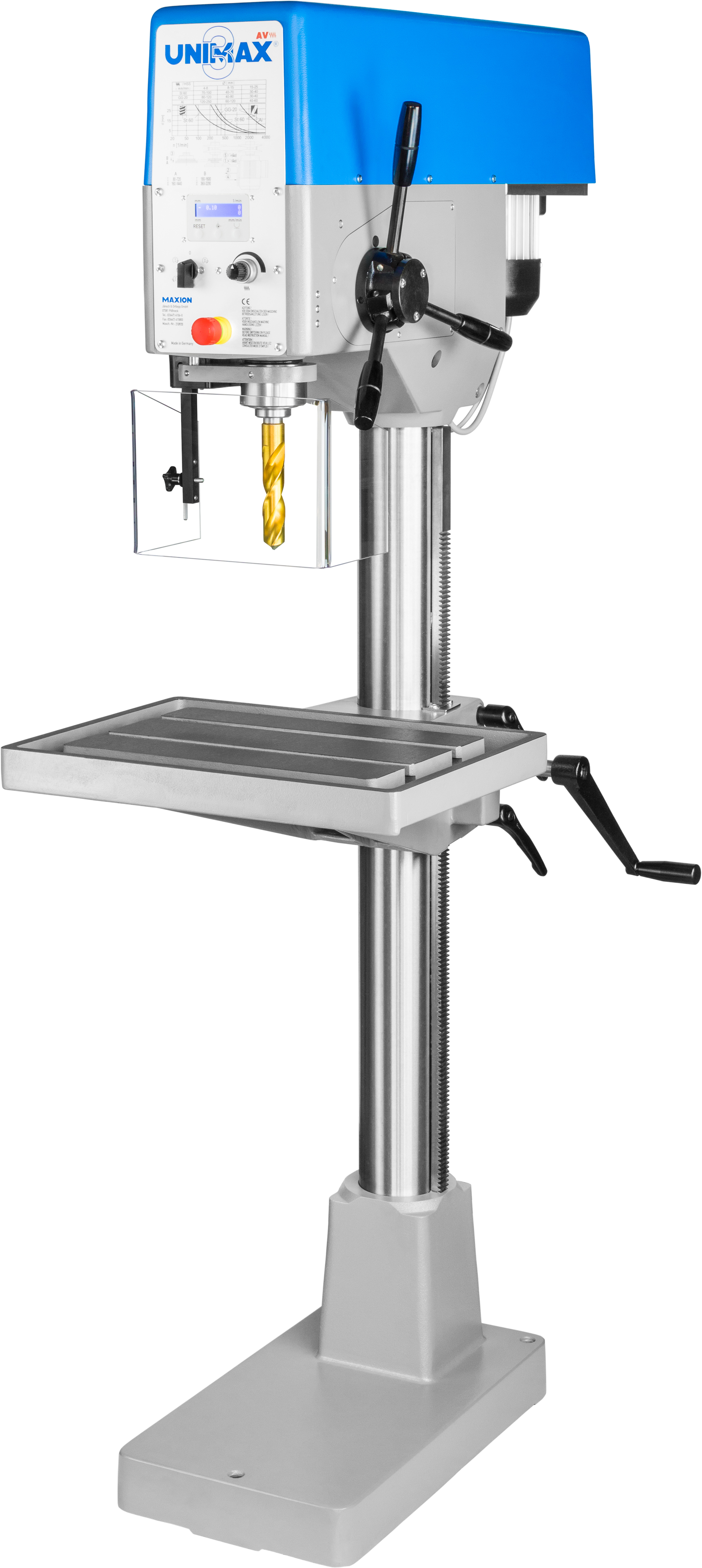

UNIMAX 3 AV
- Innovative stepless
automatic feed - Top equipment
- Easy operation
- Versatile
Modern, precise production drilling machine according to the successful concept of UNIMAX 3, with stepless variable feed drive, automatic tool ejector and chip breaking function as standard. Digital display indicates feed rate, spindle rpm and drilling depth; programmable drilling depth.
Technical data UNIMAX 3 AV
-
Constant capacity in E 335 25 mm
-
Standard capacity 30 mm
-
Tapping capacity M 20
-
Spindle MT 3
-
Automatic feed 30 - 400 mm/min
-
Spindle travel programmable 125 mm
-
Spindle to column 260 mm
-
Spindle / Table 90 to 840 mm
-
Table surface 550 x 400 mm
-
T-slot width 14 mm
-
Column diameter 110 mm
-
Total height 1,900 mm
-
Weight 280 kg
-
Pole changing motor 0.8 / 1.5 kW
-
Mains connection 400 V / 50 Hz
Stepless spindle rpm
-
Range A 80 - 1,440 rpm
-
Range B 180 - 3,200 rpm
-
Standard packaging D - 220x74x125 cm
Downloads
Options / Accessories
- Chip removal
- Retention time at drill ground
- Tapping unit
- Drill Package 3
-
1 drill chuck taper MT3 / B16
-
2 reduction inserts MT3 / MT2, MT3 / MT1
-
1 machine vice MSP 140
-
1 quick-release chuck 1 - 16 mm/B16
- Electrical cooling unit
With provided 20 litre coolant tank, including pump, pipe connections, flexible outlet and shut-off valve
