MBS EVO

Lightweight and mobile use

Battery-powered for maximum flexibility

Compact power unit

Powerful brushless motor with torque monitoring and infinitely variable speed control up to 4,000 rpm
Drilling capacity up to 13 mm

Easy to operate

Speed and rotation direction controlled via
multifunction feed lever

Versatile

Ideal for workshops, construction sites, mobile applications and DIY projects

Image: Preview version

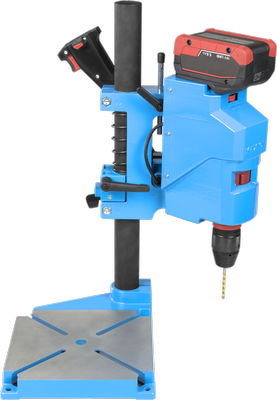

The MAXION MBS EVO is a compact drilling machine that combines mobile flexibility with precise guidance in a single machine.

The brushless 3-speed drive with speeds of up to 4,000 rpm delivers powerful yet controlled performance. The electronic Precision-Stop clutch supports precise drilling and helps reduce the risk of tool breakage. In addition, the spindle stops immediately when the trigger switch is released, providing particularly convenient operation.

The spindle with a magnetic hex bit holder allows work with screwdriver bits without a drill chuck. Variable speed, forward/reverse operation and quick stop can be controlled directly on the machine or conveniently via the multifunction feed lever. The selectable pulse mode makes it easier to loosen seized screws and to start drilling on smooth surfaces.

An integrated overload protection system protects the motor from overheating, while the electronic shut-off provides additional safety.

Made in Germany

3-speed gear selector

1st gear: 0–450 rpm

2nd gear: 0–2,000 rpm

3rd gear: 0–4,000 rpm

Mode selector

Torque limitation

Maximum torque

Pulse function

Multifunction feed lever

On/off, speed adjustment

Forward/reverse

Transport lock

The MAXION MBS EVO is designed for practical, efficient operation. The asymmetrically positioned 40 mm column provides more clearance around the workpiece. Workpieces and vises can be securely mounted on the milled work surface with clamping slots. The swiveling machine holder supports flexible operation and allows quick adjustment to different situations. The depth stop and clearly readable scale ensure precise depth control. The integrated return spring makes the work process easier and provides comfortable handling. You can drill comfortably without changing your grip while making full use of the 65 mm drilling depth.

Scale ring

Depth stop

Height adjustment

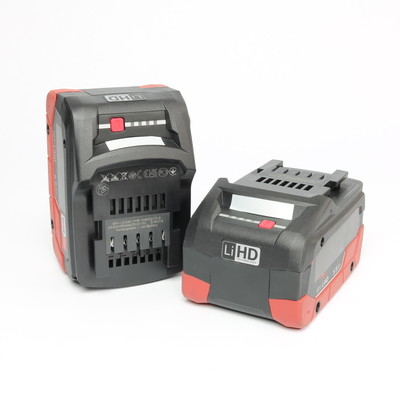

One battery for everything

The MAXION MBS EVO is compatible with the CAS battery system. This means that all 18 V battery packs and chargers from this system can be used (battery pack and charger available as optional accessories).
